Description

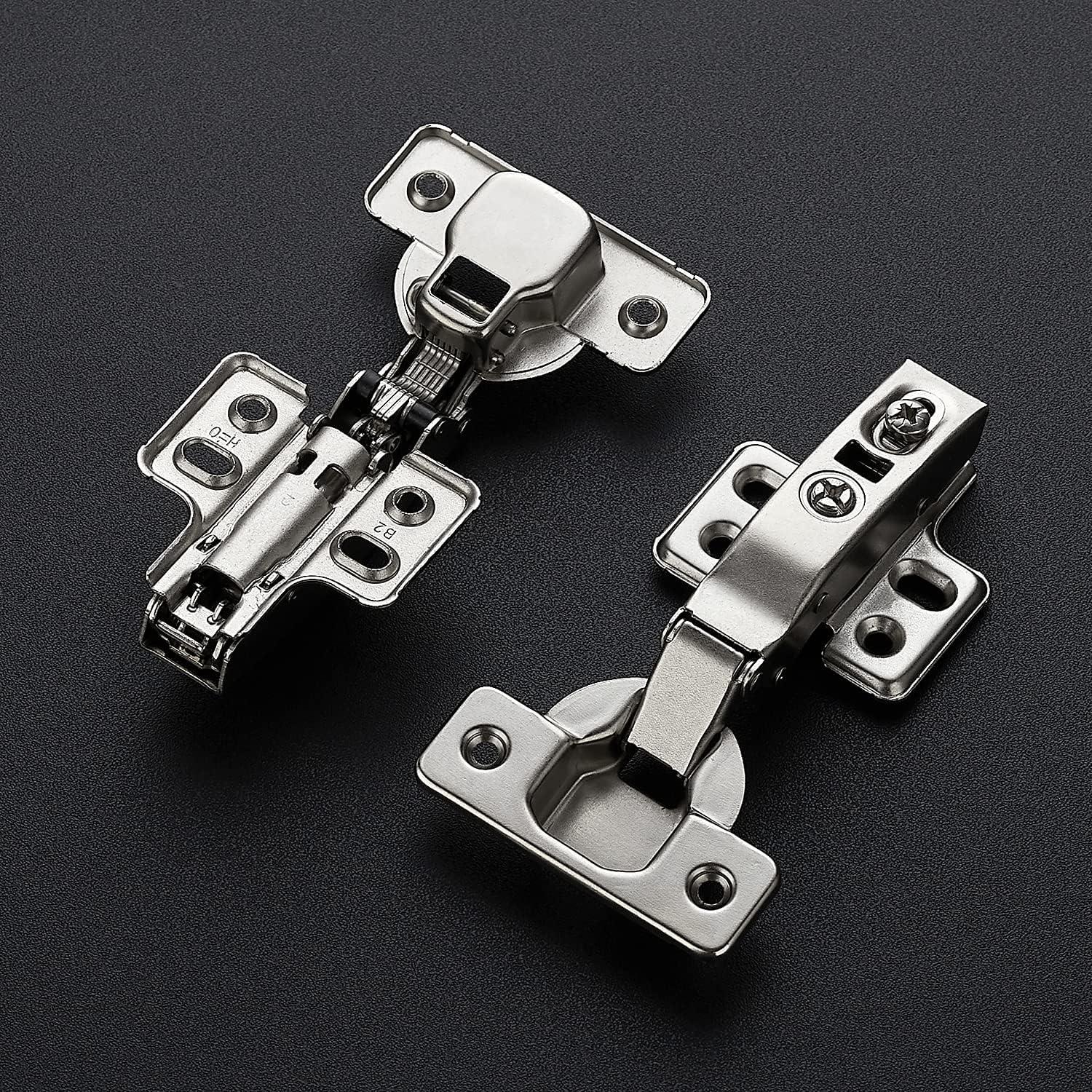

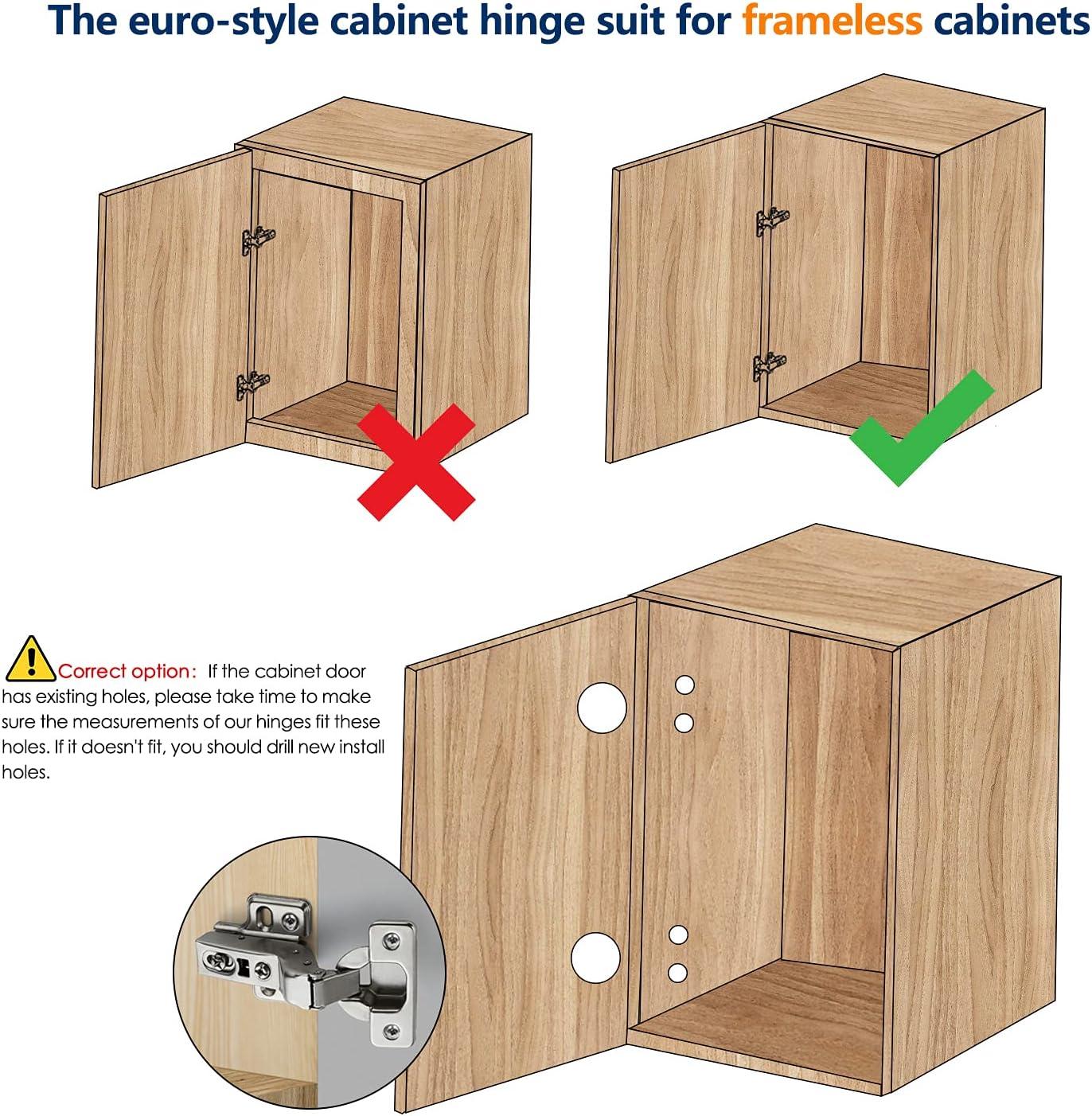

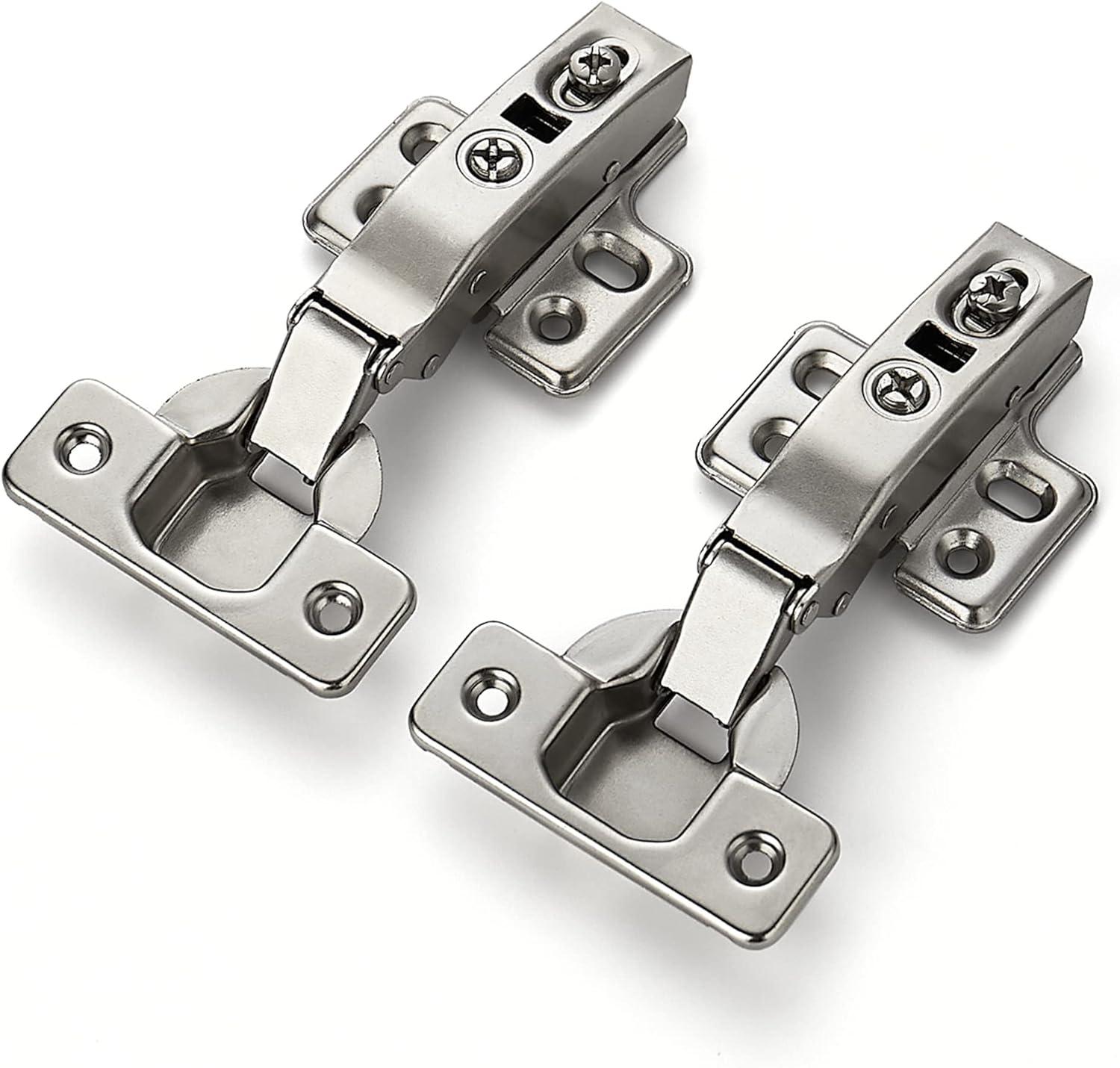

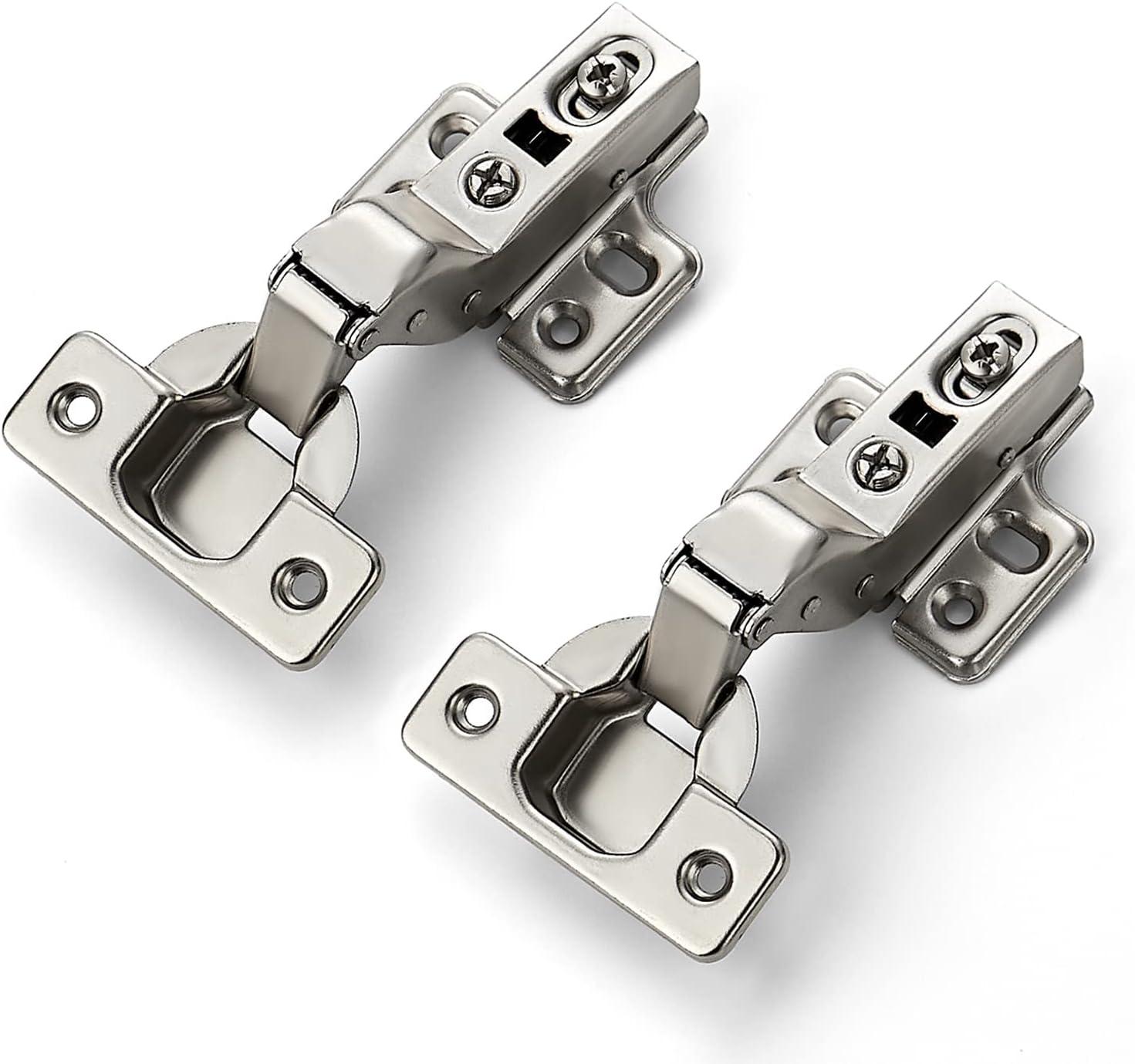

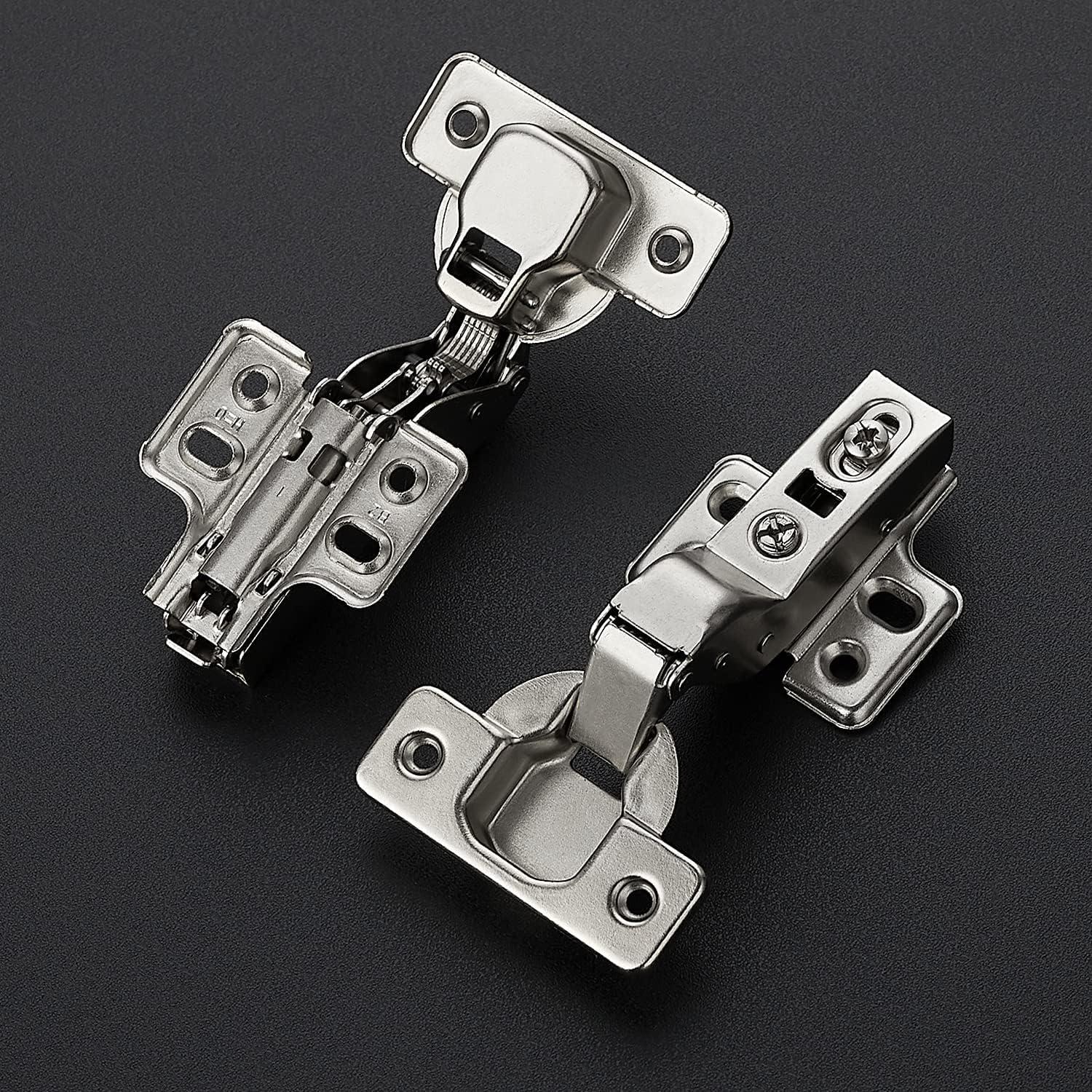

Half Overlay: Euro-style concealed hinges for half overlay doors on frameless cabinets. Designed for pairs of doors sharing a middle partition, with hinges on opposite sides Not suitable for face frame cabinets
Installation specification: Diameter of the cup is 35mm, depth of the cup is 11 5mm, screw holes distance on the door is 45mm And the range of door thickness is 14-22mm Opening degree:105 degree

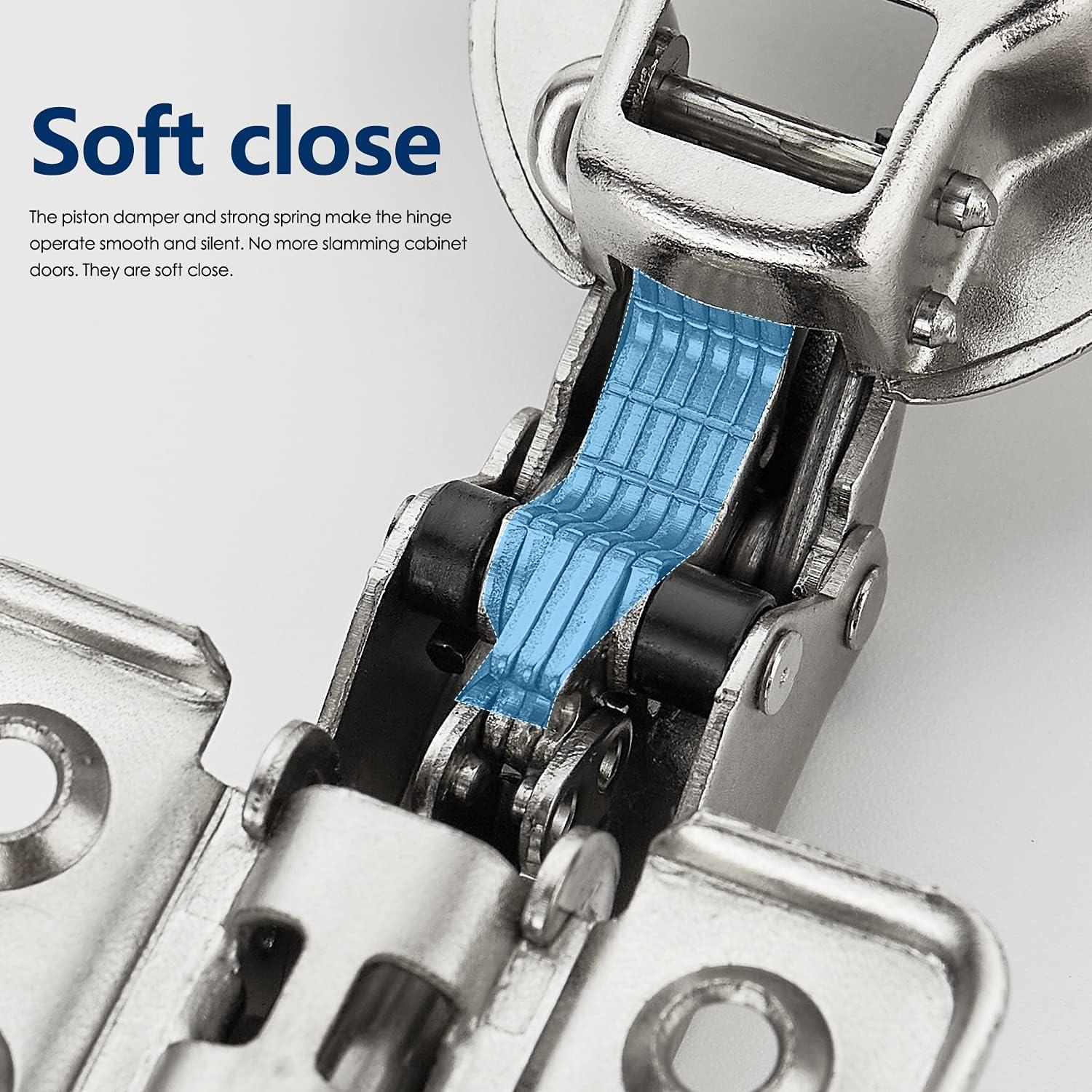

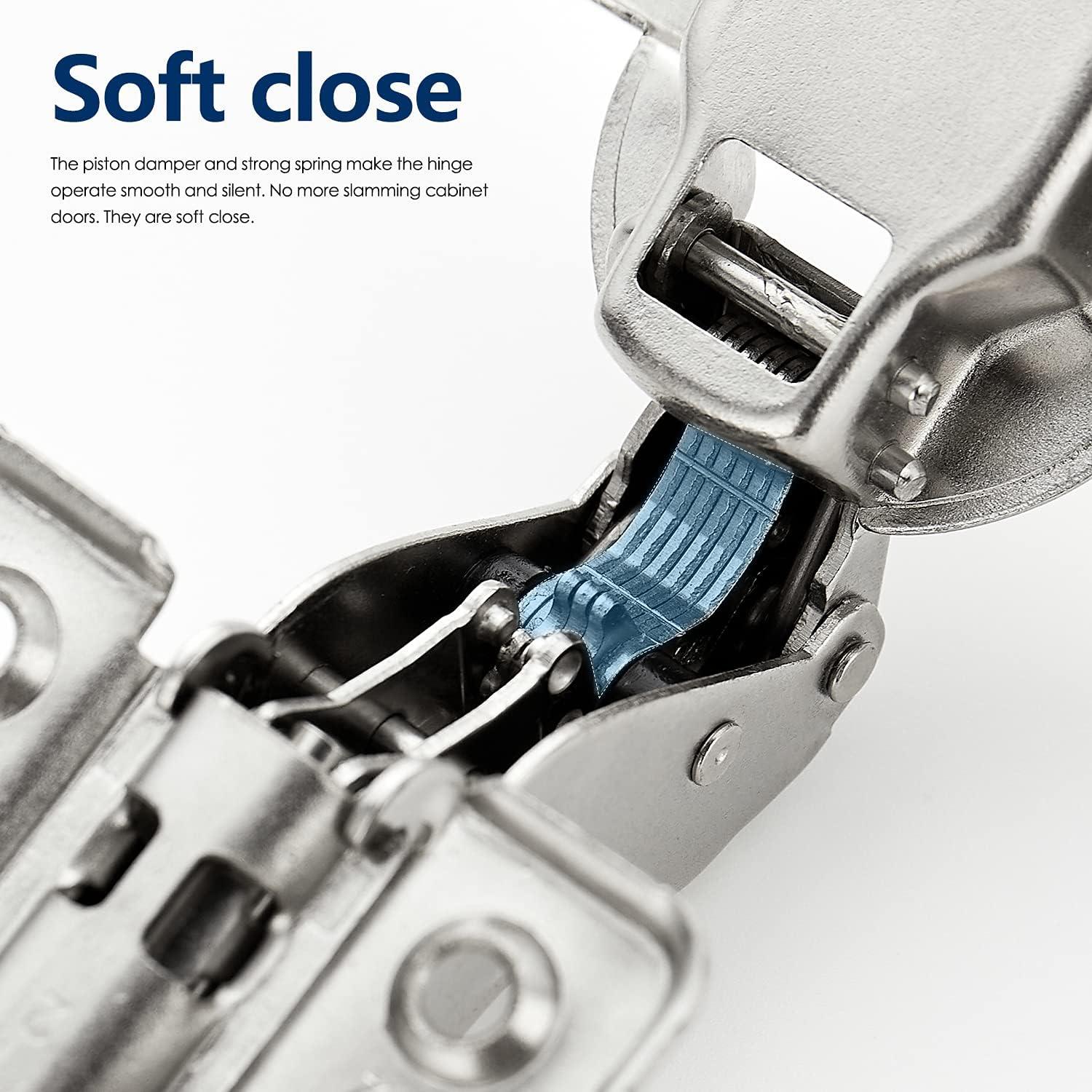

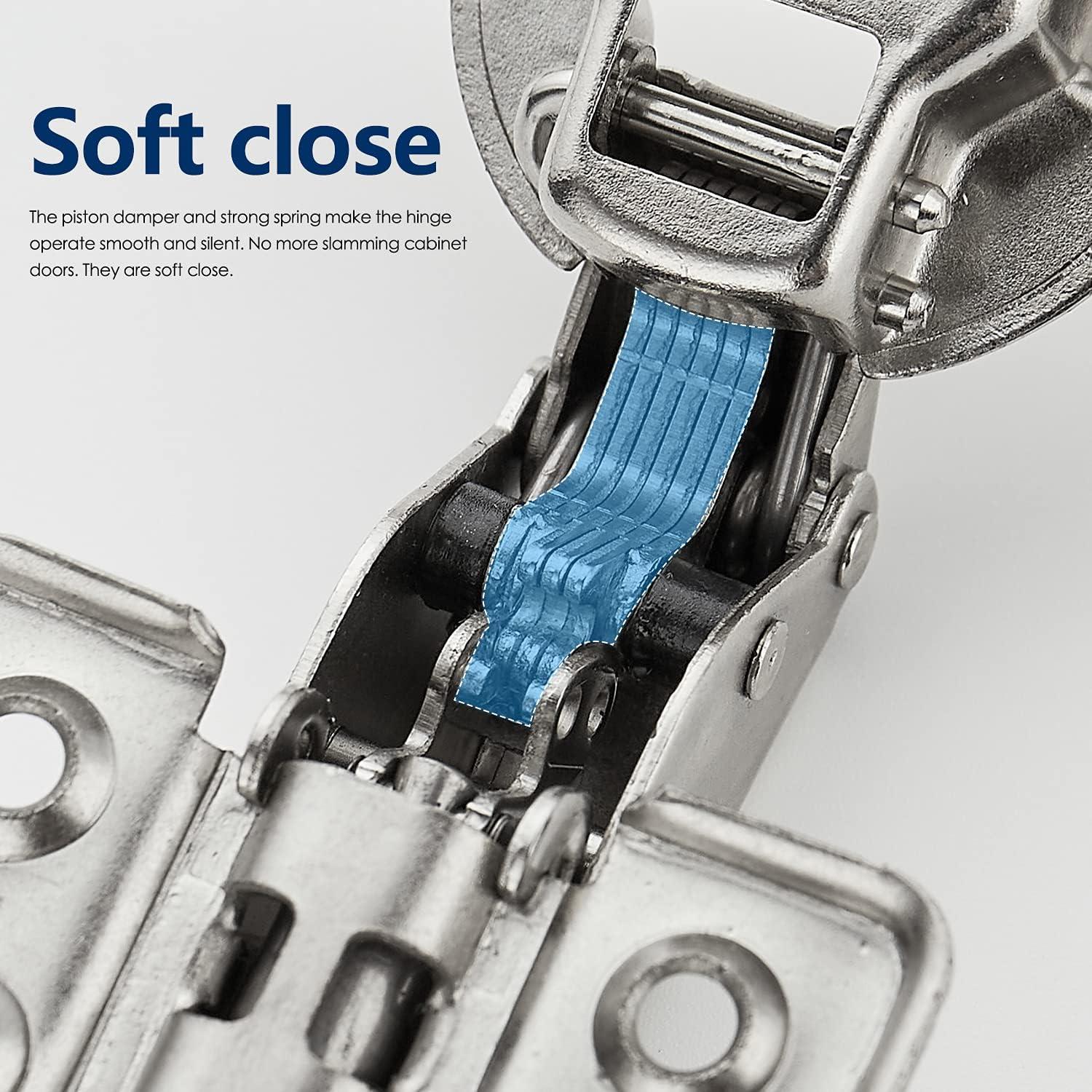

Soft close: The piston damper and strong spring make the hinge operate smooth and silent No more slamming cabinet doors They are soft close

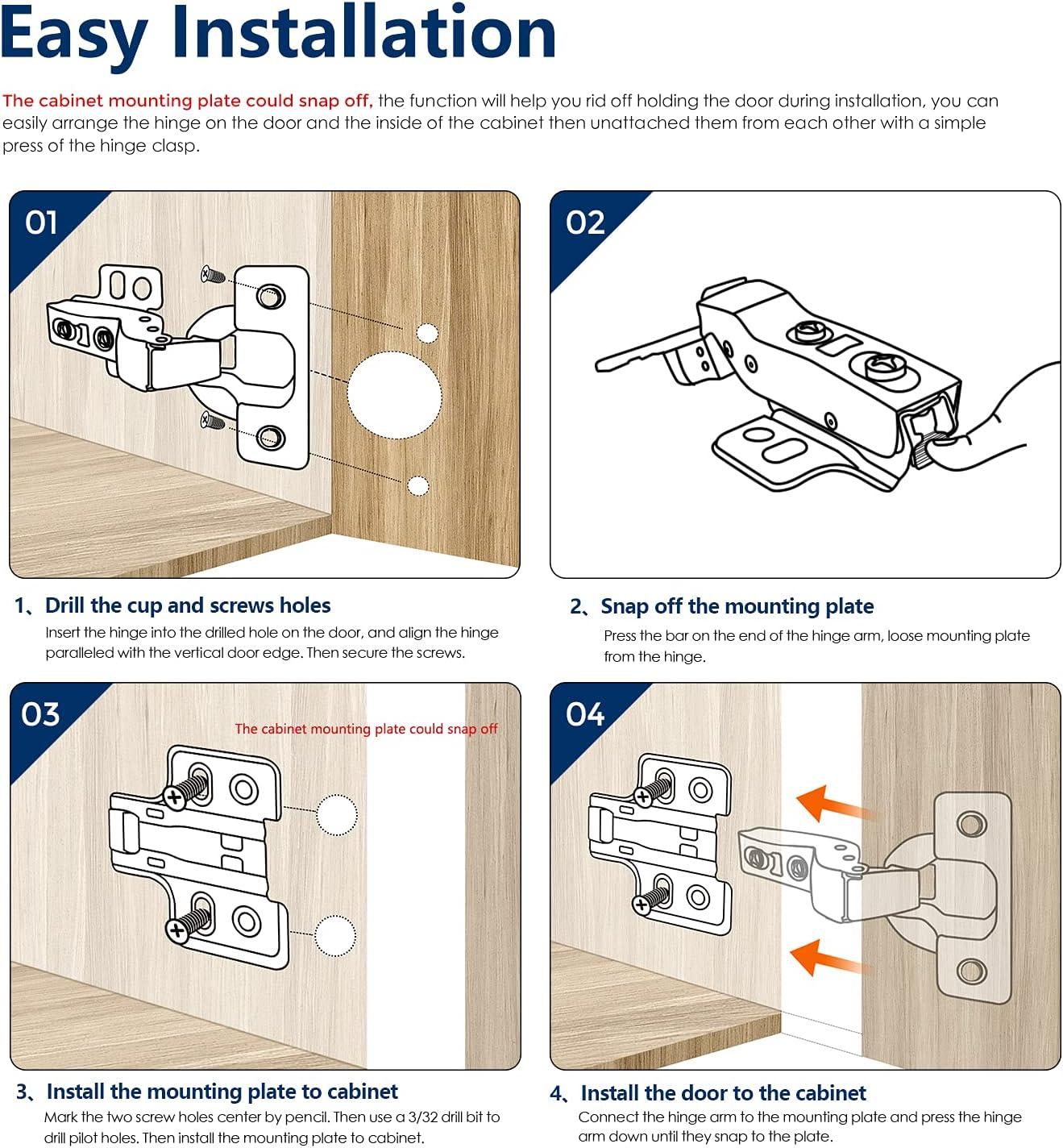

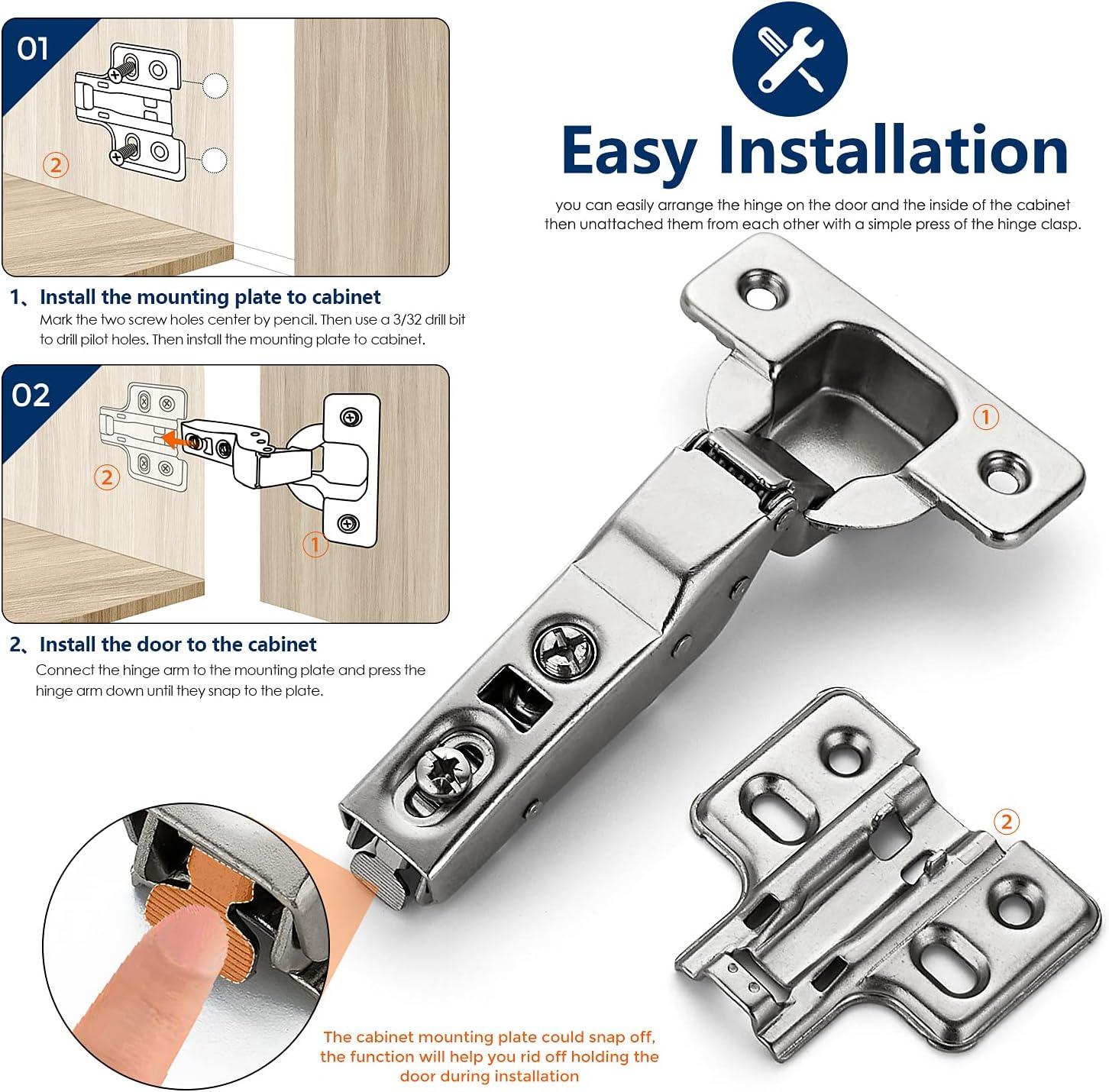

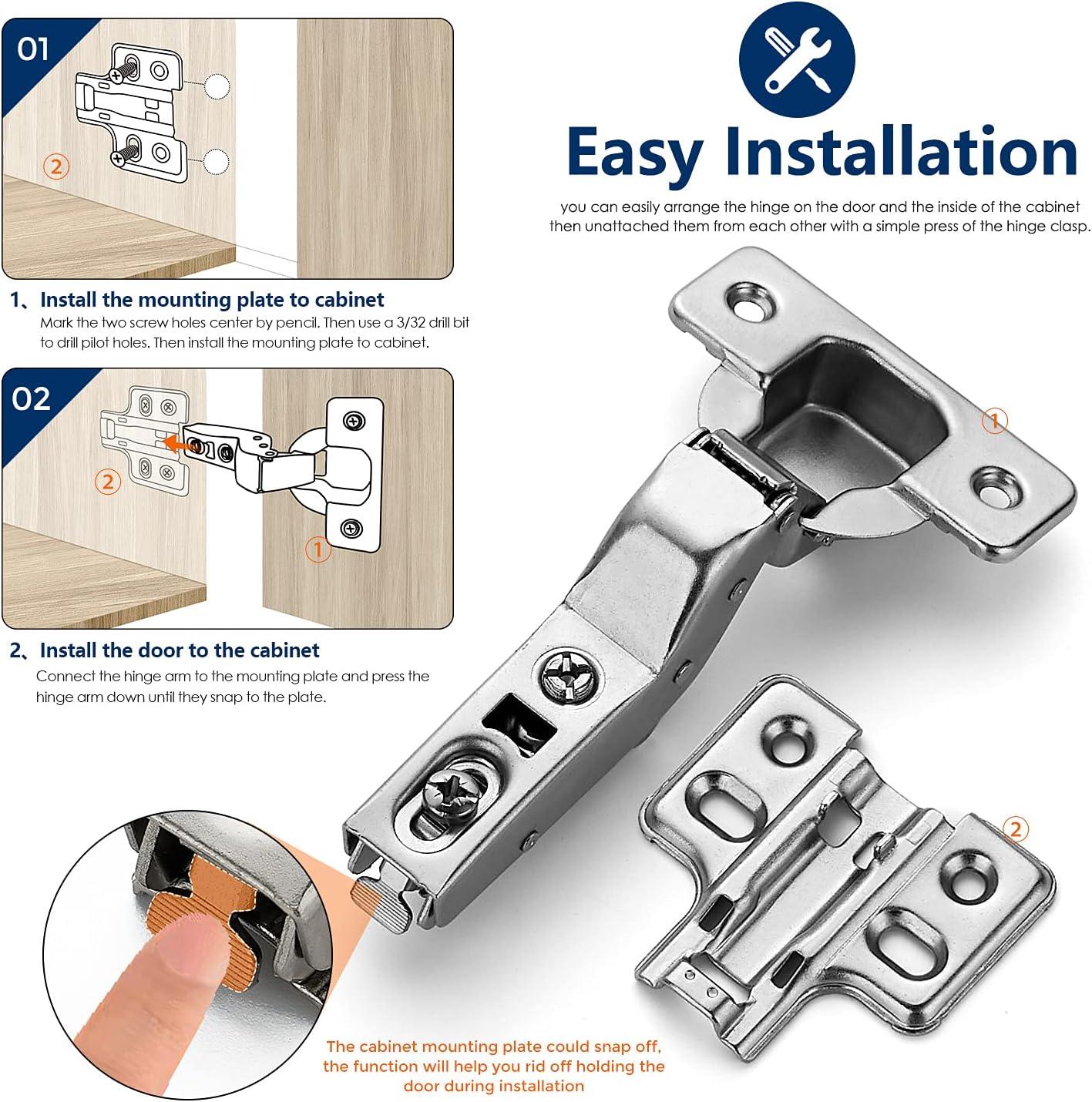

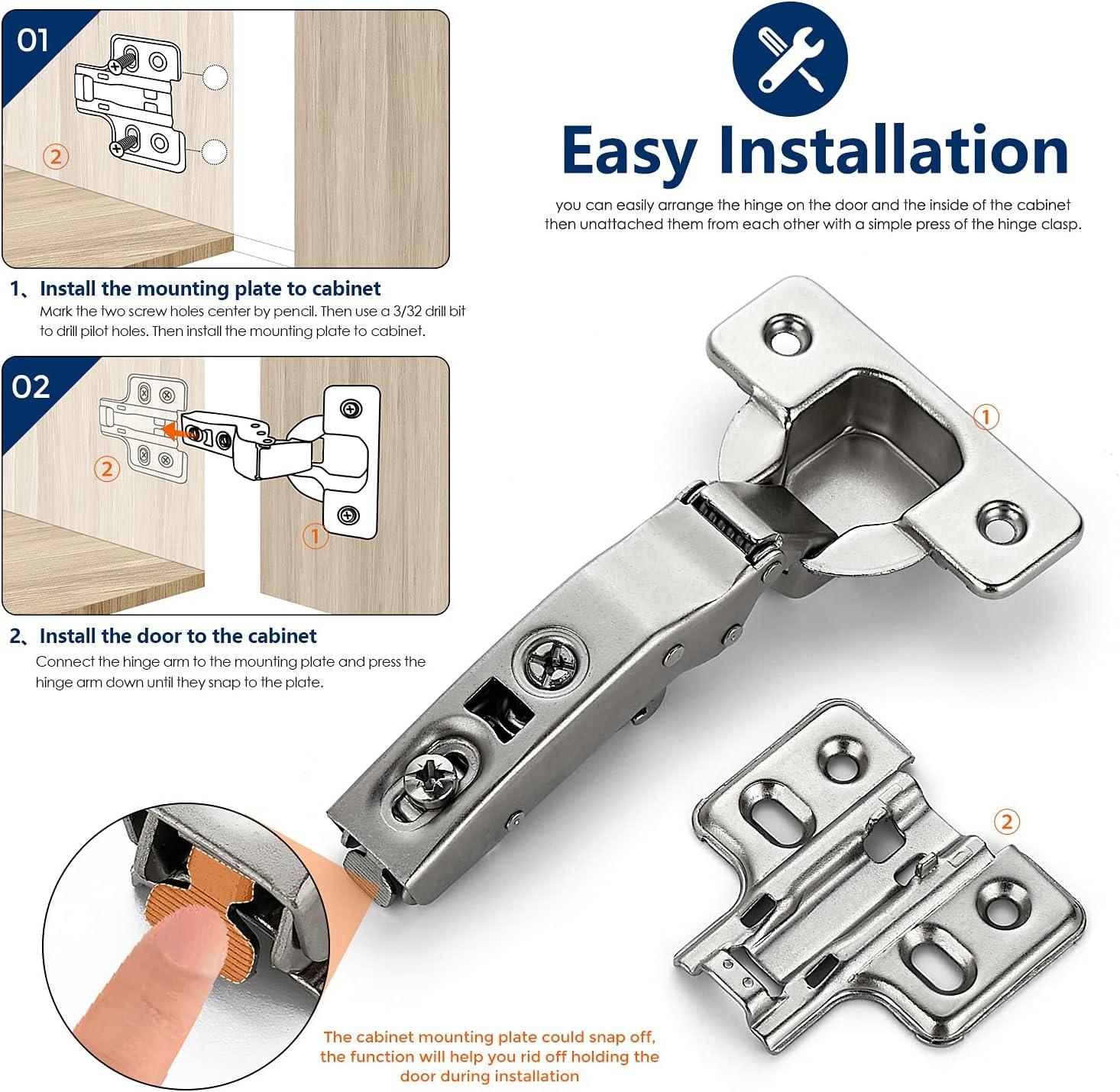

Easy Installation: The cabinet mounting plate easily detaches, allowing you to position the hinge on the door and cabinet separately. A simple press of the clasp reattaches them, simplifying the process without needing to hold the door in place

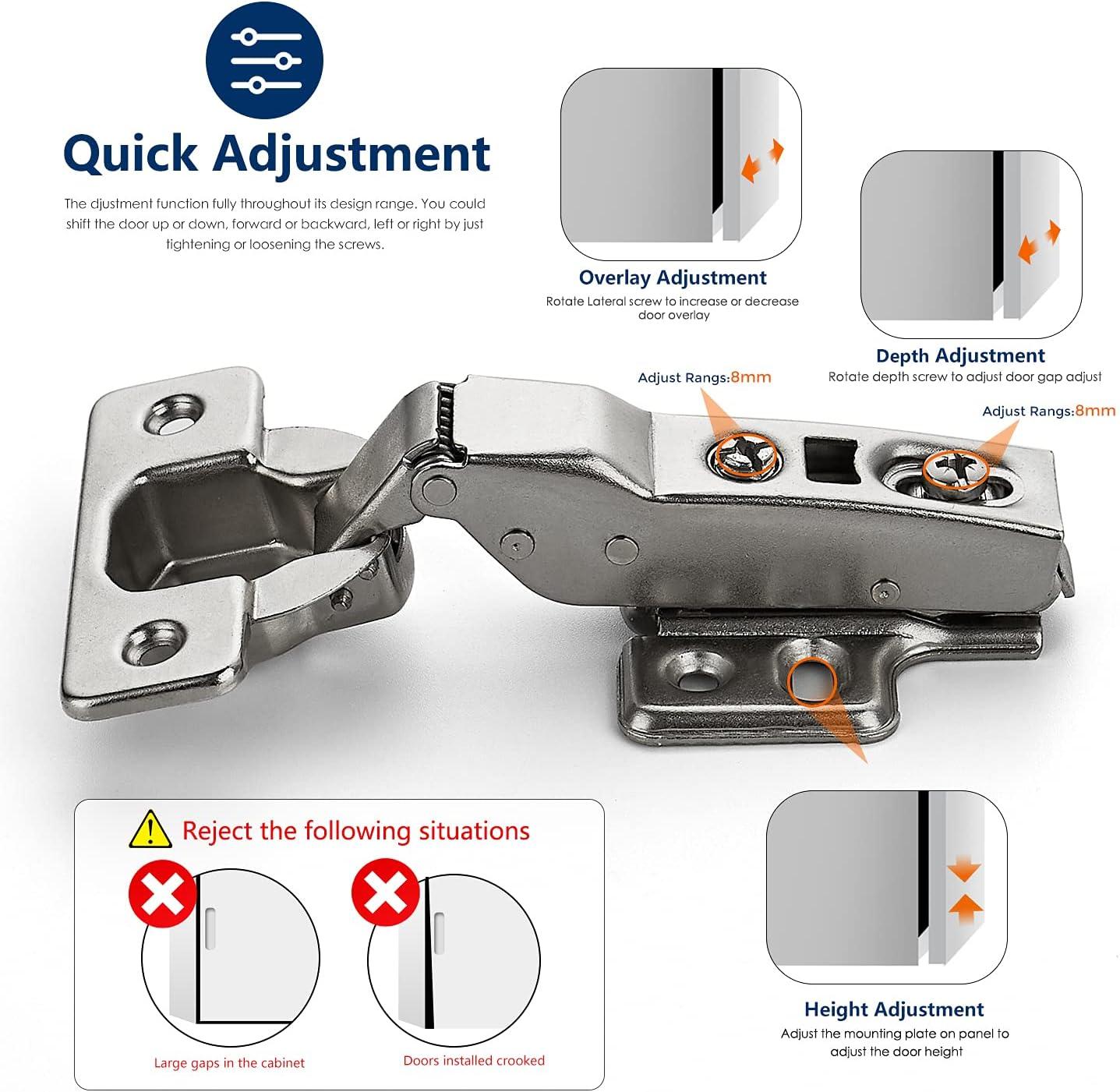

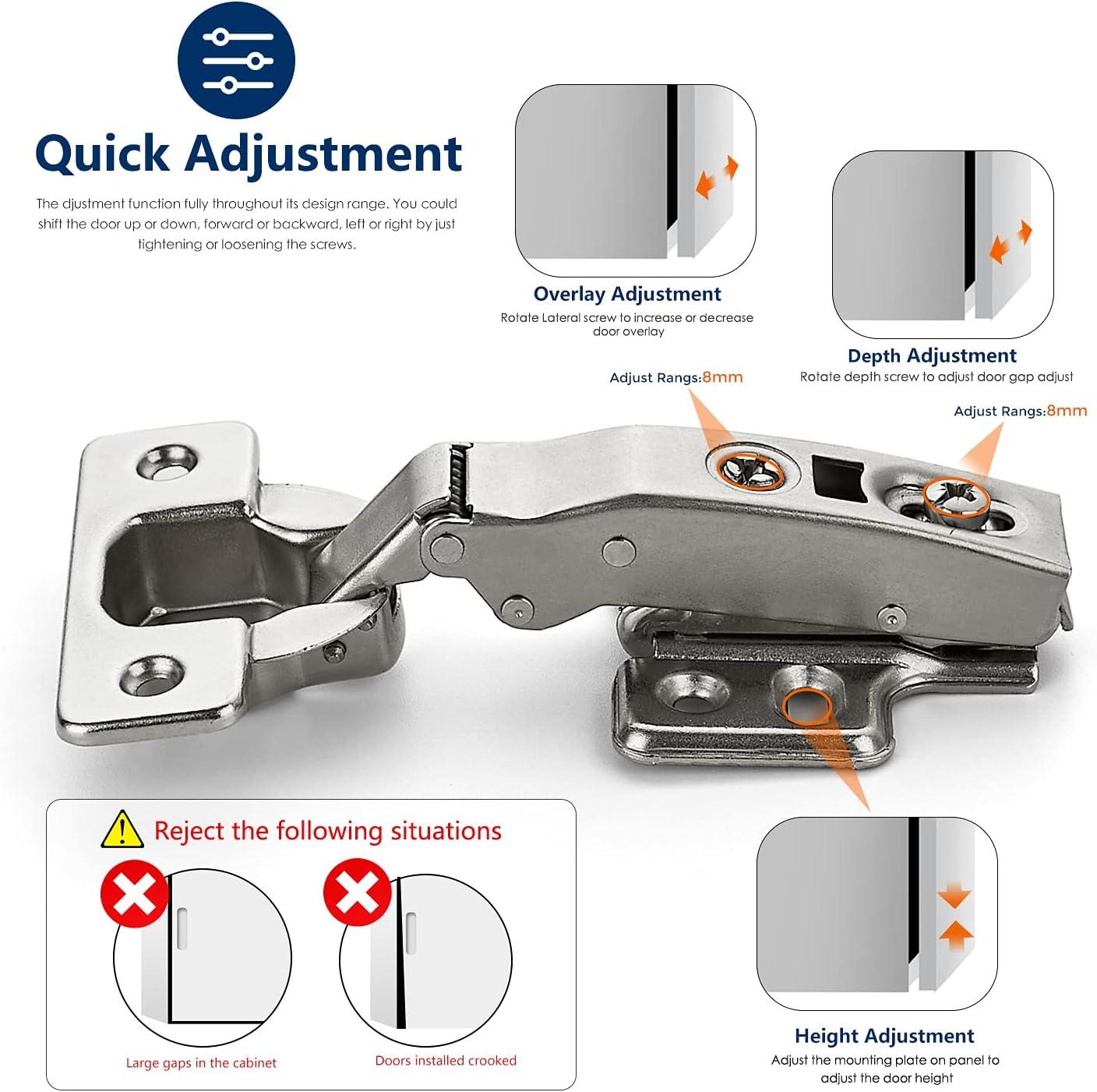

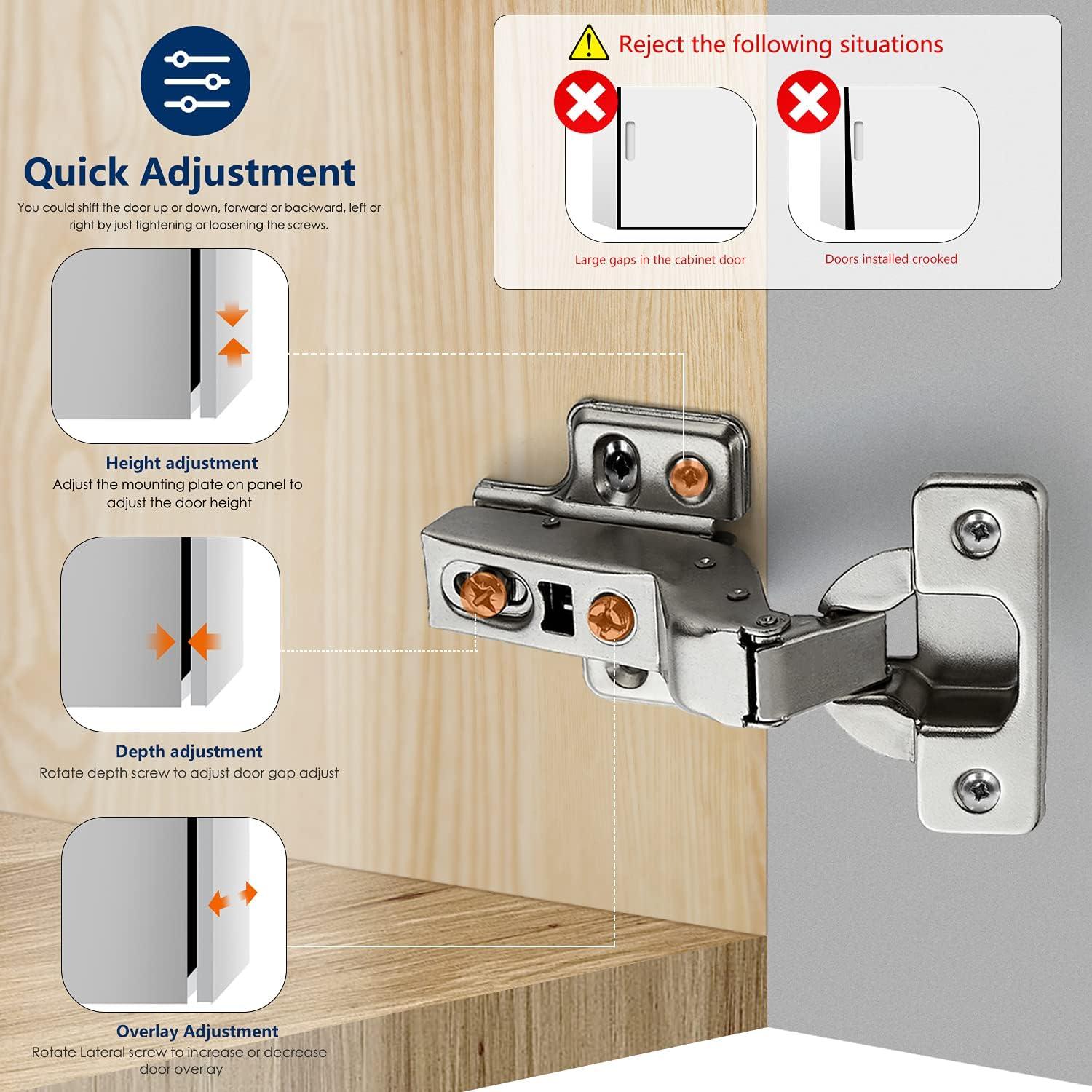

Quick adjustment: The adjustment function fully throughout its design range You could shift the door up or down, forward or backward, left or right by just tightening or loosening the screws
